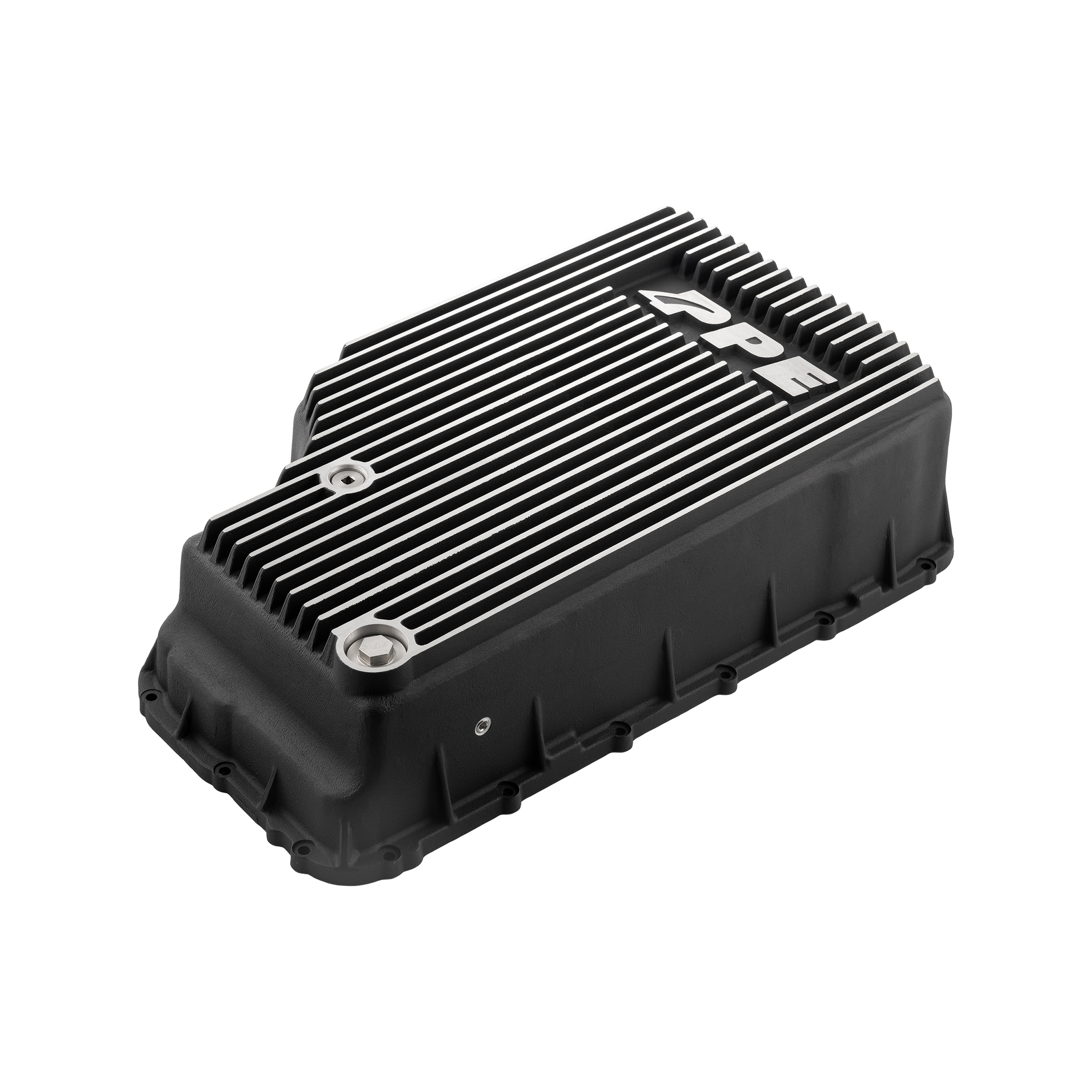

2020-2025 Ford Super Duty Diesel 10R140 Heavy-Duty Cast Aluminum Deep Transmission Pan

Las Vegas, NV – Pacific Performance Engineering (PPE) introduces the 10R140 Heavy-Duty Cast Aluminum Deep Transmission Pan, for 2020-2025 Ford Super Duty 6.7L Diesel. Higher transmission load and heat come with the truck’s increased torque and horsepower. Our upgraded pan offers an additional eight quarts of fluid capacity to keep the transmission running smoothly and efficiently.

Cast from high-grade A356.0-T6 aluminum alloy, the transmission pan offers superior strength and impact resistance compared to the factory Ford plastic transmission pan. The deep external cooling fins keep transmission fluid temperatures in a desirable range, while the internal baffles further enhance heat transfer capabilities and ensure consistent fluid pickup.

The Transmission Pan also includes a fluid level check standpipe and a fluid fill adapter, making transmission fluid services easily manageable. A billet stainless steel drain plug with a high-temperature-rated neodymium magnet provides additional protection.
Keep your 10R140 transmission healthier and cooler with PPE.

Key Features & Benefits:

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 8 quarts for higher thermal capacity
• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
• Deep one-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
• Cast-in gussets for additional transmission housing flange support and increased rigidity
• 304 Stainless steel fill plug with built-in high temperature rated neodymium magnet and Viton O-ring
• Fluid fill fitting and fill plug included for easy services
• Included standpipe ensures accurate fluid level checks during the filling process
• Equipped with a 1/8-inch NPT port with a pre-installed NPT plug
• Compatible with OEM gasket and filter
• Patent Pending

Applications & Product Links

2020-2025 Ford Super Duty 6.7L Power Stroke 10R140 Heavy-Duty Cast Aluminum Transmission Pan
